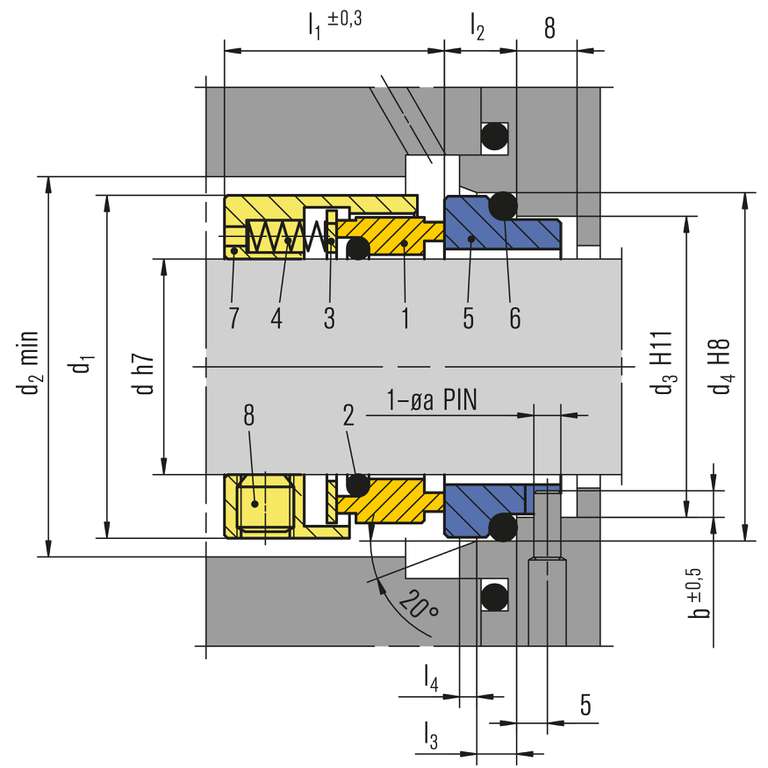

Item Description
1 Seal face
2, 6 O-Ring
3 Thrust ring
4 Spring
5 Seat
7 Drive collar
8 Set screw

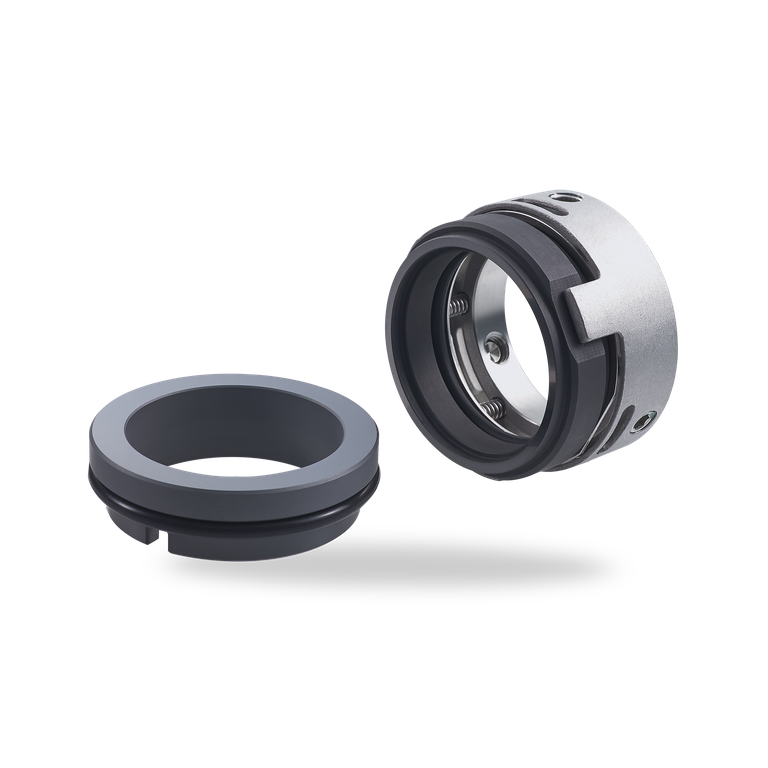

LA200

Merkmale

  • Single seal
  • Unbalanced
  • Independent of direction of rotation
  • Rotating multiple springs

Vorteile

  • Fits to EN and ANSI seal chambers
  • Optimized, narrow width seal face design
  • Compact axial and radial dimensions

Einsatzbereich

Pressure: p = vacuum … 35 bar (174 PSI)
Temperature:
t = -20 °C … 200 °C (-4 °F … 392 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 500 mPa·s
Solids content: … 0.5 %

Werkstoffe

Seal face:
Carbon graphite resin impregnated (B),
High density carbon graphite
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V)
Metal parts: CrNiMo steel
