LSA6
Leakage collection reservoir
LSA6
Leakage collection reservoir

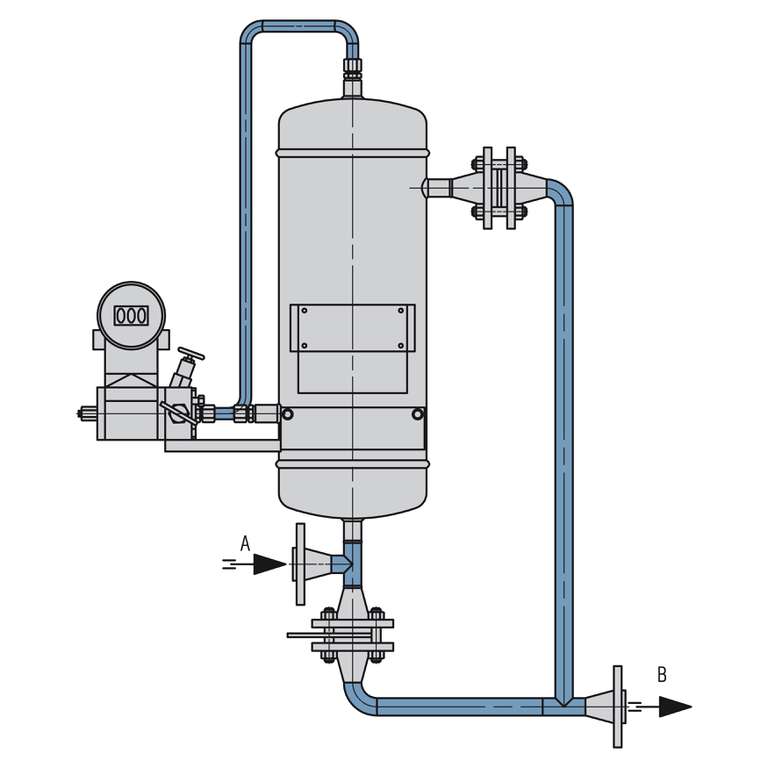

LSA6000A4
A From mechanical seal
B To leakage collection system
A From mechanical seal
B To leakage collection system
LSA6
Leakage collection reservoir
Features
The EagleBurgmann leakage control systems of the LSA6000 range in accordance with API Plan 65A consist of a leakage collection tank with integrated orifice and overflow pipe. The level can be monitored with the differential pressure transmitter which is supplied together with a five-way manifold valve.
Advantages
- Seal failure detection
- Safe discarding of excessive seal leakage
- To ensure durability, all components are corrosion resistant.
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 1CW-FL
- API 682 4th ed. Cat. 1 - 1CW-FX
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Functional description
In accordance with API Plan 65A, the LSA6000 leakage control system is used to discharge leakage from single seals.
The outboard leakage is collected in an external tank; the leakage volume is monitored (level in the tank).
Notes
Design and production in accordance with EU Pressure Equipment Directive PED 2014/68/EU available.
Design, calculation and production available acc. to ASME VIII, Div. 1.
3rd party inspection, ASME stamp on request.
Design, calculation and production available acc. to ASME VIII, Div. 1.
3rd party inspection, ASME stamp on request.
Recommended piping plans
Product variants
| Designation | LSA6000A4 | |
|---|---|---|
| Design code | PED 2014/68/EU | ASME VIII, Div. 1 | |
| Volume of vessel (liters) | 4 | |
| Allowable pressure1) | 44 bar (638 PSI) | |
| Allowable temperature1) | -20 °C … +120 °C (-4 °F … +248 °F) |
|
| Process connections | Flange 3/4", 600 lbs | |
| Metal parts | 316/316L | |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
