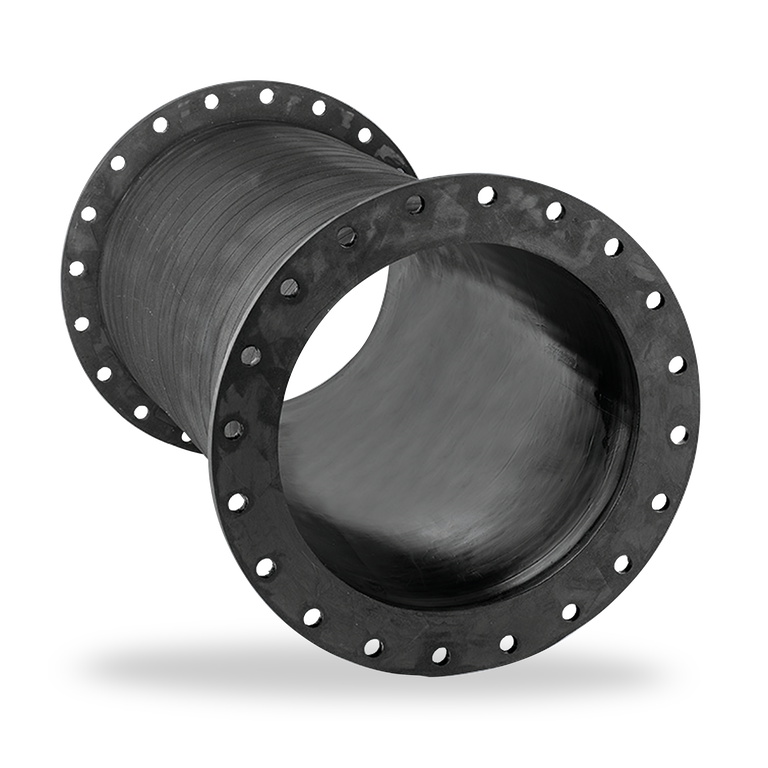

Rubber Hose Type
expansion joints

Rubber Hose Type
expansion joints

Rubber Hose Type<br/>expansion joints

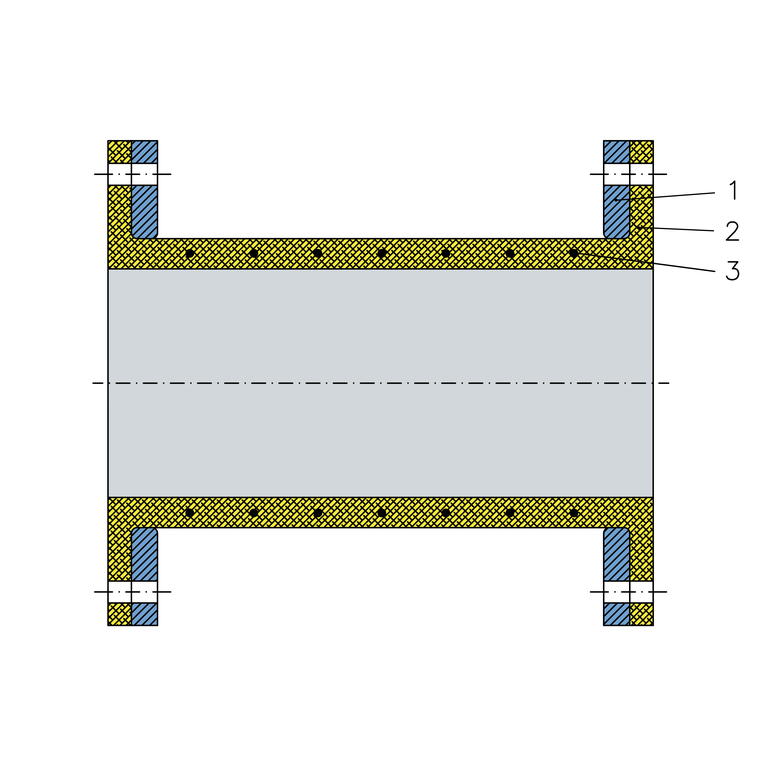

Rubber hose type

Item Description
1 Rubber bellows
2 Flanges
3 Reinforcement ring

Rubber Hose Type
expansion joints

Merkmale

  • Transportation or piping systems that carry fluids, slurries or gasses under pressure or vacuum at varying temperatures.
  • Reduction of vibration
  • Dampen sound transmission

    Vorteile

    • Easy installation
    • Flanges are not in contact with medium, which enables lower grade material
    • Galvanic surfaces/ coatings possible
    • Gaskets can be eliminated
    • Manual production
    • Special measures (length, diameter, flanges) → custom made

      Einsatzbereich

      Diameter: DN 25 ... DN 2,000 mm (1” ... 80”)
      Pressure: as per request
      Temperature: up to 180 °C (356 °F)
      Movements: vibrations

      Werkstoffe

      • Bellows: Various elastomers such as EPDM, EPDM Food Grade, Neoprene, Nitrile, Hypalon, Butyl, Viton.
      • Flanges: carbon steel and stainless steel.

        • Other materials are available on request.

      Standards und Freigaben

      NDT and documentation: Can be provided per customer request e.g. Material Certificates and NDT test reports.

      Ähnliche Produkte

      D Type expansion joints

      • Transportation or piping systems that carry fluids, slurries or gasses under pressure or vacuum at varying temperatures
      • Reduction of vibration
      • Dampen sound transmission
      • Compensate movements due thermal changes, misalignments caused by wear, load stresses, settling of supporting foundations
      • Molding production with long radius arch
      • Standard measures (length)

      DFS Type expansion joints

      • Transportation or piping systems that carry fluids, slurries or gasses under pressure or vacuum at varying temperatures
      • Reduction of vibration
      • Dampen sound transmission
      • Compensate movements due thermal changes, misalignments caused by wear, load stresses, settling of supporting foundations
      • Molding production with long radius arch
      • Standard measures (length)
